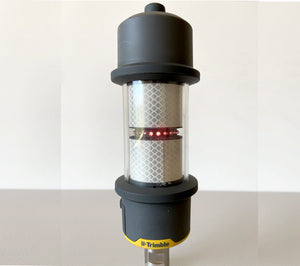

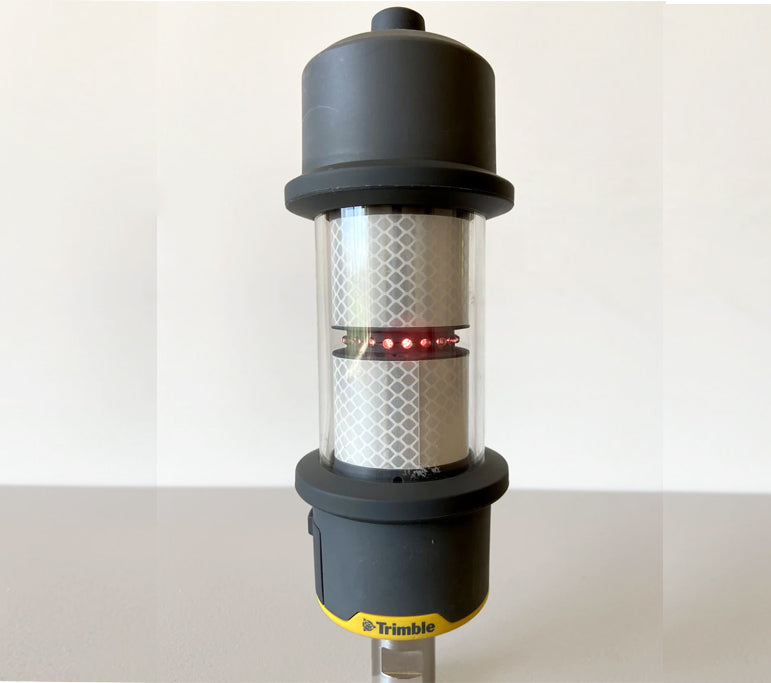

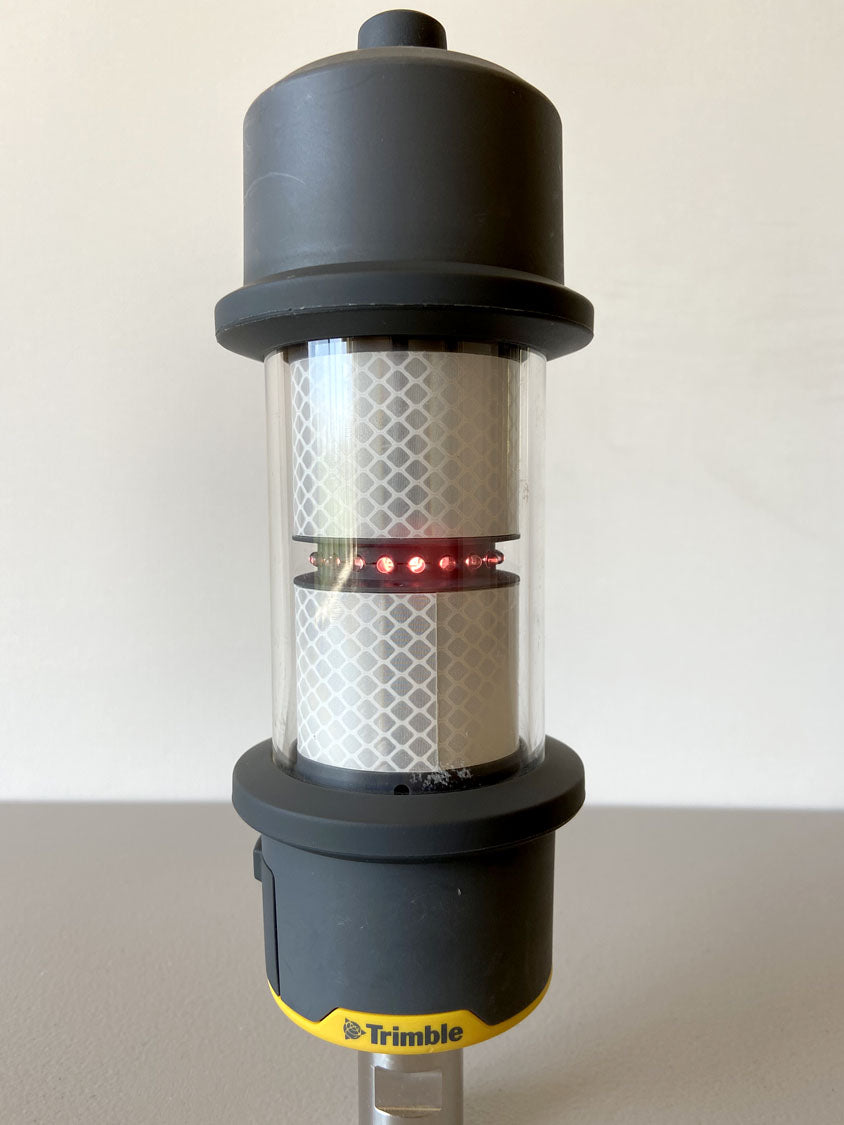

    Trimble AT360 Active Track Prism, for S, SPS, RTS series Robotic Total Stations

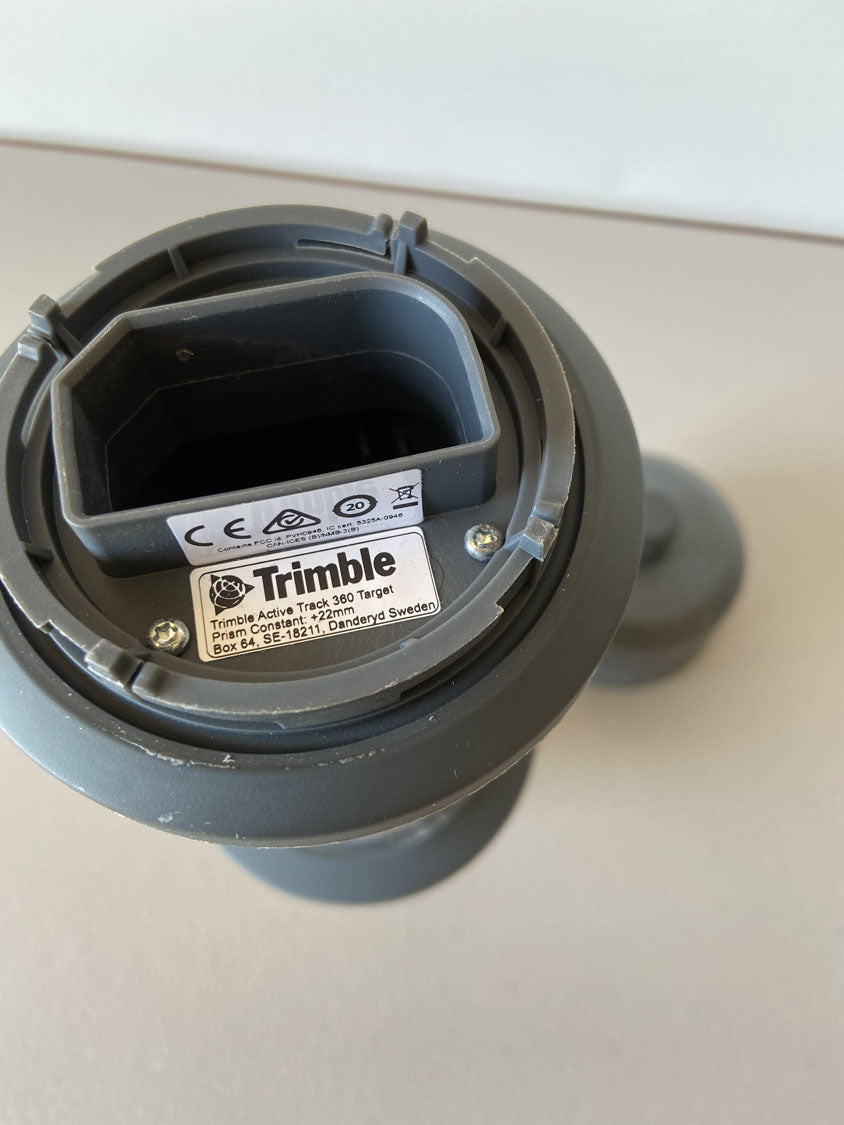

    Trimble Active Track 360 target for Trimble S series robotic total stations is a high-precision active tracking prism with 2mm accuracy @ 200 meters.  The AT360 is equipped with a built-in tilt sensor that provides an on-screen e-Bubble display (Access 2017 or newer).  At 1.4 pounds, it's very light-weight (640 grams) and offers 12 hours of operation on a single battery. Standard Trimble target height: 135mm, +22mm prism constant.

    The AT360 offers increased accuracy over the MT1000 but uses the DR mode for distance measurements, so distance depends on the DR mode of your instrument:

    DR Plus range in normal conditions: 1640 feet (500m)
    DR HP range in normal conditions: 492 feet (100m)

    Compatible with:

    Trimble Total Stations: S3, S5, S6, S7, S8, VX | SPS: 610 / 620, 700 / 710/20/30, SPS930 | RTS: 555 / 633 / 655 / 773 / 873

    Field software is version dependent: SCS900, Access, FieldLink, Survey Pro.  Please check your software has a version that is compatible.

    Condition: This item is pre-owned in A (Excellent) condition

    Qty 1. AT360 prism
    QTy 1. Trimble 7.4v Li-Ion battery - New

    Product information: Trimble prism comparison >>

    Shipping is UPS 3 Day Select® to all U.S. addresses. Expedited shipping is also available, please contact us for rates.
